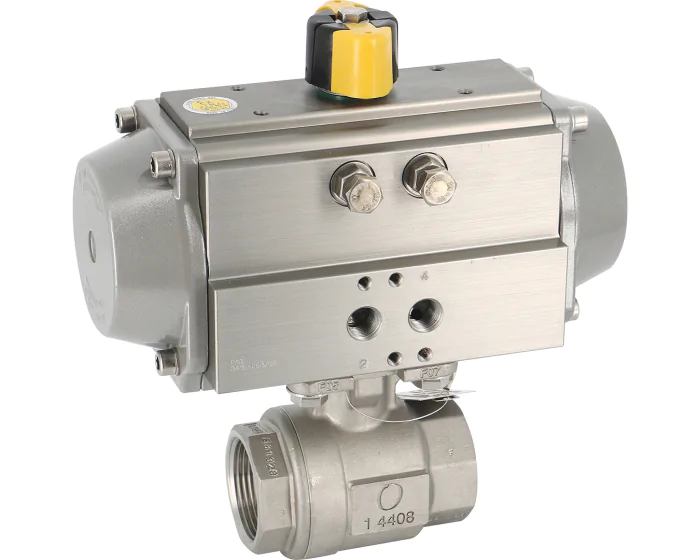

The 715 XS series 2-piece body ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/glass seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 63 bar, TS: 180°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 182.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Spring return |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 272402017004R | S1000368 |
€167.07
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 272402017104R | S1000369 |
€189.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 272403017004R | S1000370 |
€178.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 272403017106R | S1000371 |
€226.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 272404017004R | S1000372 |
€193.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 272404017107R | S1000373 |
€256.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 | 272405017006R | S1000374 |
€224.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 | 272405017108R | S1000375 |
€321.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 272406017007R | S1000376 |
€277.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 272406017109R | S1000377 |
€405.21
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' | 272407017008R | S1000378 |
€384.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' | 272407017110R | S1000379 |
€544.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 | 272408017008R | S1000380 |
€514.40
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 | 272408017110R | S1000381 |
€674.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 272409017009R | S1000382 |
€687.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 272409017111R | S1000383 |
€940.30
(excl. btw)
|
add to cart |
